AIS 140 GPS Tracking Device
Hardware Specification:
GSM/GPRS Features:
- Quectel M66 Quad Band 850/900/1800/1900 MHz
- GPRS Multi-slot Class 12, GPRS Mobile station Class B
- SMS (Text)
GNSS Module Features:
- GPS - L1 1575.42MHz C/A Code
- IRNSS - L51176.45MHz C/A Code
- Tracking Sensitivity of - 162dBm.
- Location Accuracy of 2.5m CEP 50% @ -147 dBm.
- Inbuilt Embedded patch antenna
- Protocol NMEA-0183: GGA, GGL, GSA, GSV, RMC, VTG
Hardware Features:
- ARM Cortex®-M0 processor
- 16 MB external Flash memory
- Mems Sensor for Driver Behavior
- 3.7V/900mAh Li-Ion Battery
Interface Features:
- Power Supply: 9 to 48V DC
- Serial Interface
- 4 Digital Inputs + 1 (Ignition)
- 2 Open collector digital outputs
- 2 Analog input
- LED indication for Status, GPS& GPRS
AIS140 Features:
- Highly configurable data acquisition and sending
- 10 x10 Polygon Geofence areas
- Sleep Mode
- Real-Time Process monitoring
- Firmware update over the Air (FOTA)
- Configuration update via SMS and Server
- TCP/IP protocol support
- 40000 records storing capacity
- Fall Back Text message and Driver behavior alerts
- Odometer
- The device can be configured to hit multiple servers for a single event
- AIS-140 Approved

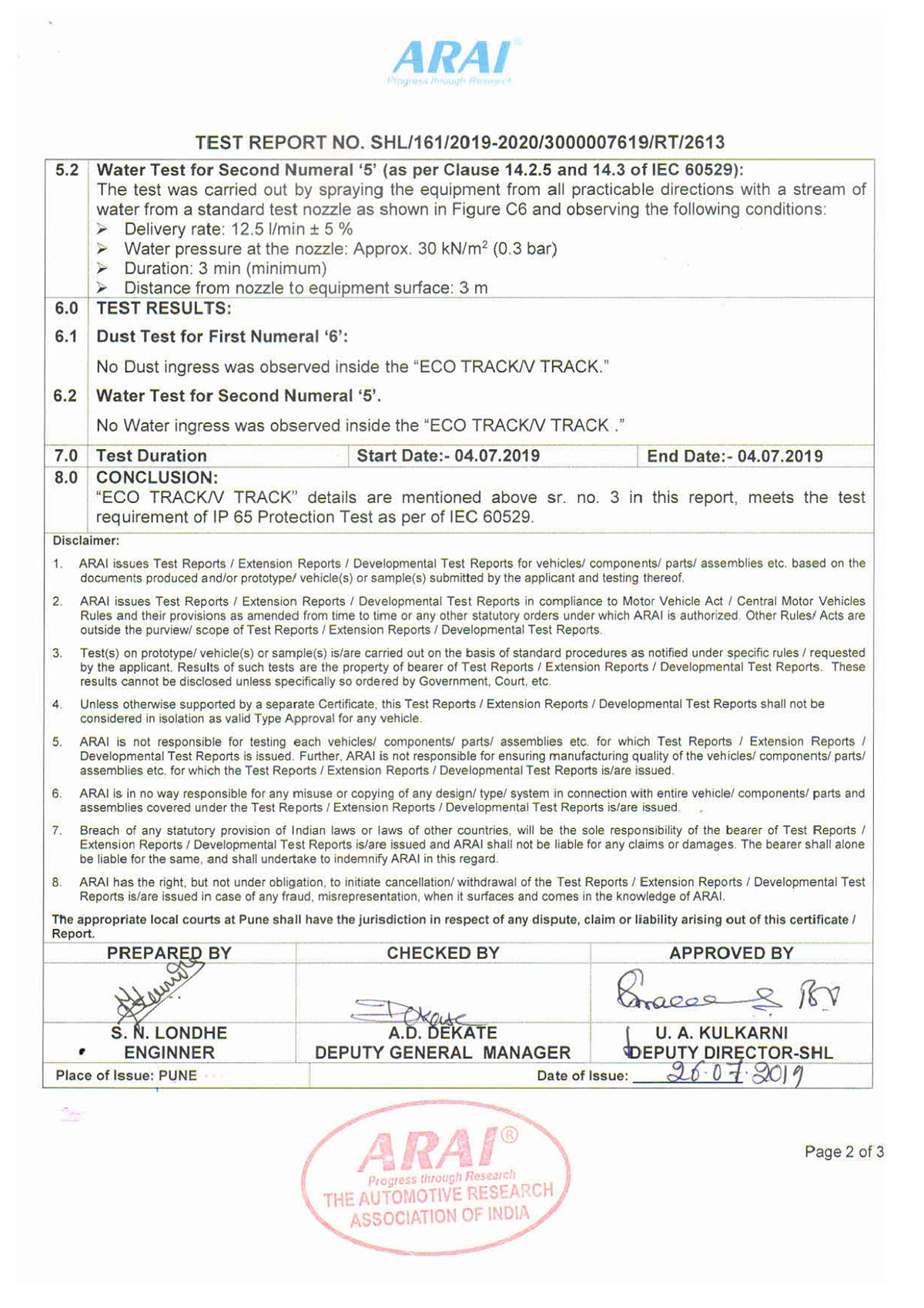

- Approved By ARAI AIS-140 IRNSS
